| Method | Covariates |
|---|---|
| Auto EWARS | Population, rainfall, teamperature |
| INLA Baseline | None |
| Naïve | None |
| sNaive | None |
| Mean | None |
| ETS | None |
| ARIMA | None |
| ARIMA Climate | Rainfall, temperature |
| ARIMA Madagaskar | Rainfall (Lag 3), temperature (Lag 3) |
| Linear Regression | Trend, seasonality |
| Linear Regression Climate | Trend, seasonality, rainfall, teamperature |
| LightGBM | Percentage of zero values, lags of target variable (lag 6 - 12), rainfall, temperature, month, healthcare facility code, product code |
| XGBoost | Percentage of zero values, lags of target variable (lag 6 - 12), rainfall, temperature, month, healthcare facility code, product code |
| Random Forest | Percentage of zero values, lags of target variable (lag 6 - 12), rainfall, temperature, month, healthcare facility code, product code |
- Three-month Overseas Institutional Visit (OIV) at the HISP Centre, University of Oslo, Norway
Collaborated with:
– DHIS2 core development team
– Climate and health modelling team (CHAP)
Focus of the collaboration:
– Understanding how disease forecasts are produced, validated, and deployed in DHIS2
– Model reuse across domains is attractive, but largely untested
Outline
Background
The fundamental question
What we are going to do
What did we find
What NEXT?
The Problem: A tale of two data streams
Health supply chains are struggling with forecasting at sub-national/ facility level.
Operational realities: Incomplete records, irregular orders, frequent manual adjustments.
This masks true demand and leads to a cycle of persistent, critical stockouts.
But… we have a success story.
Platforms like DHIS2 and CHAP have robust, high-performing models for forecasting disease cases (morbidity).
What is DHIS2 and CHAP?

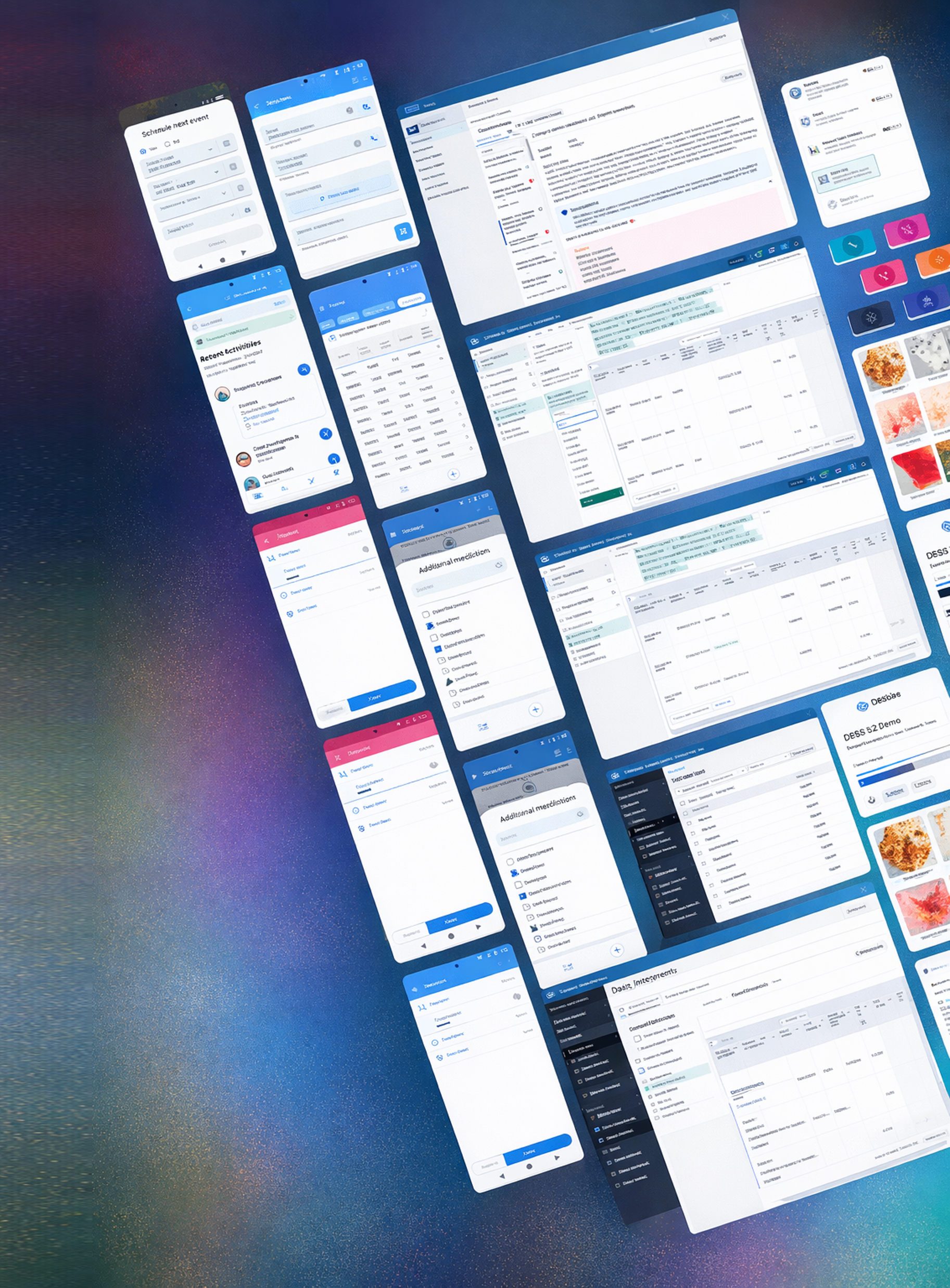

DHIS2 (District Health Information Software 2) is a free, open-source, web-based health information platform.
It is the world’s largest Health Management Information System (HMIS), used by Ministries of Health in over 80 countries.
CHAP stands for the Climate Health Analytics Platform.
CHAP is a predictive modelling layer integrated within DHIS2, designed to support climate-informed disease forecasting and early warning.
What we are going to do
Apply the same CHAP morbidity models (no extra tuning) to product demand (malaria commodities, vaccines).
Link forecasts to operations: evaluate both forecast accuracy and inventory impact.
Build a portability matrix: when can we transfer a model?
Design an implementation workflow for DHIS2/CHAP.
Provide R scripts, CHAP YAML configs and sample datasets for full reproducibility.
Our experimental workflow
Data exploration

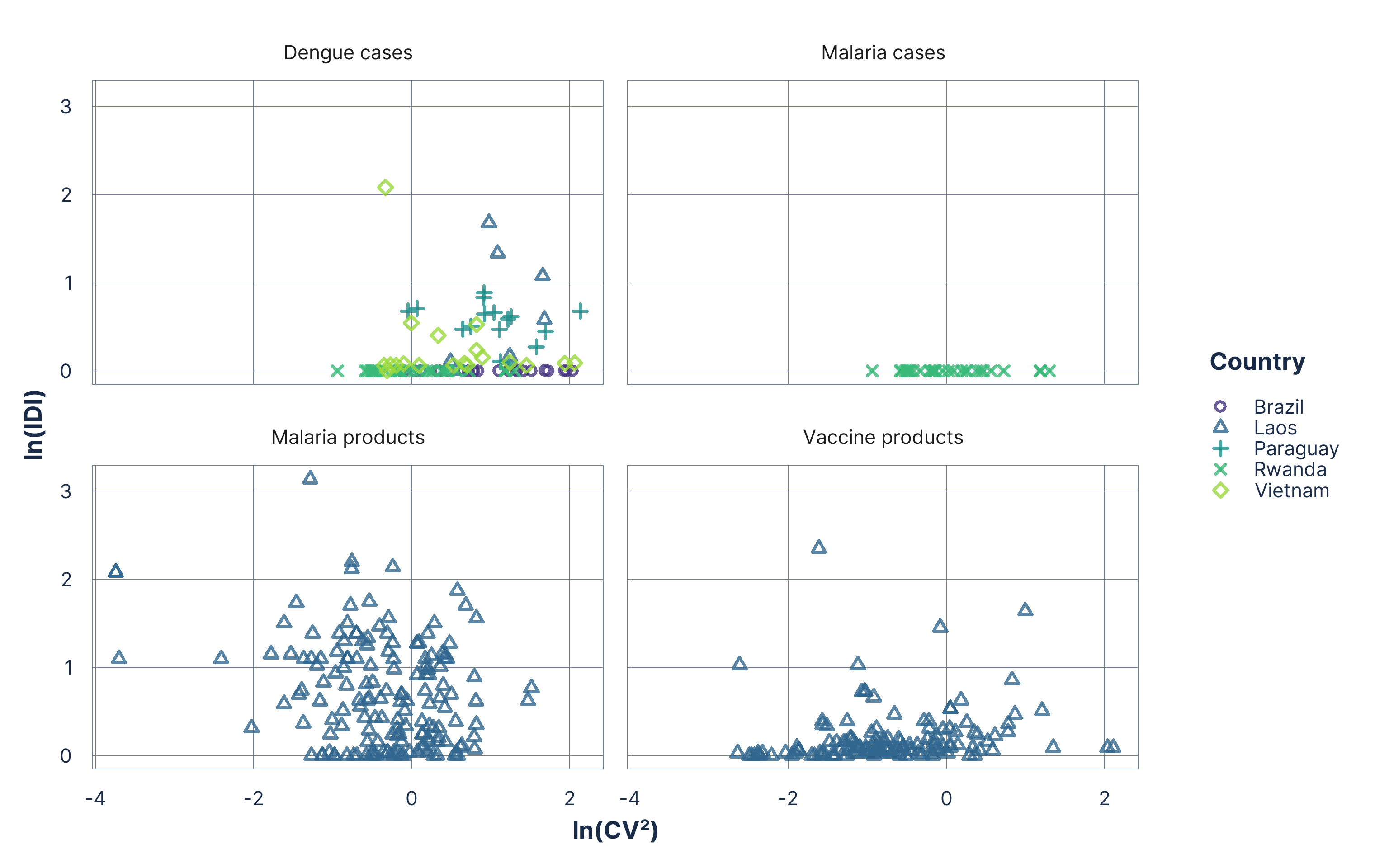

Figure 1: Classification of all morbidity and consumption series using the ln(CV²) and ln(IDI) map. Each point represents a monthly series plotted on the logarithmic CV²–IDI scale.
Average forecast method rankings

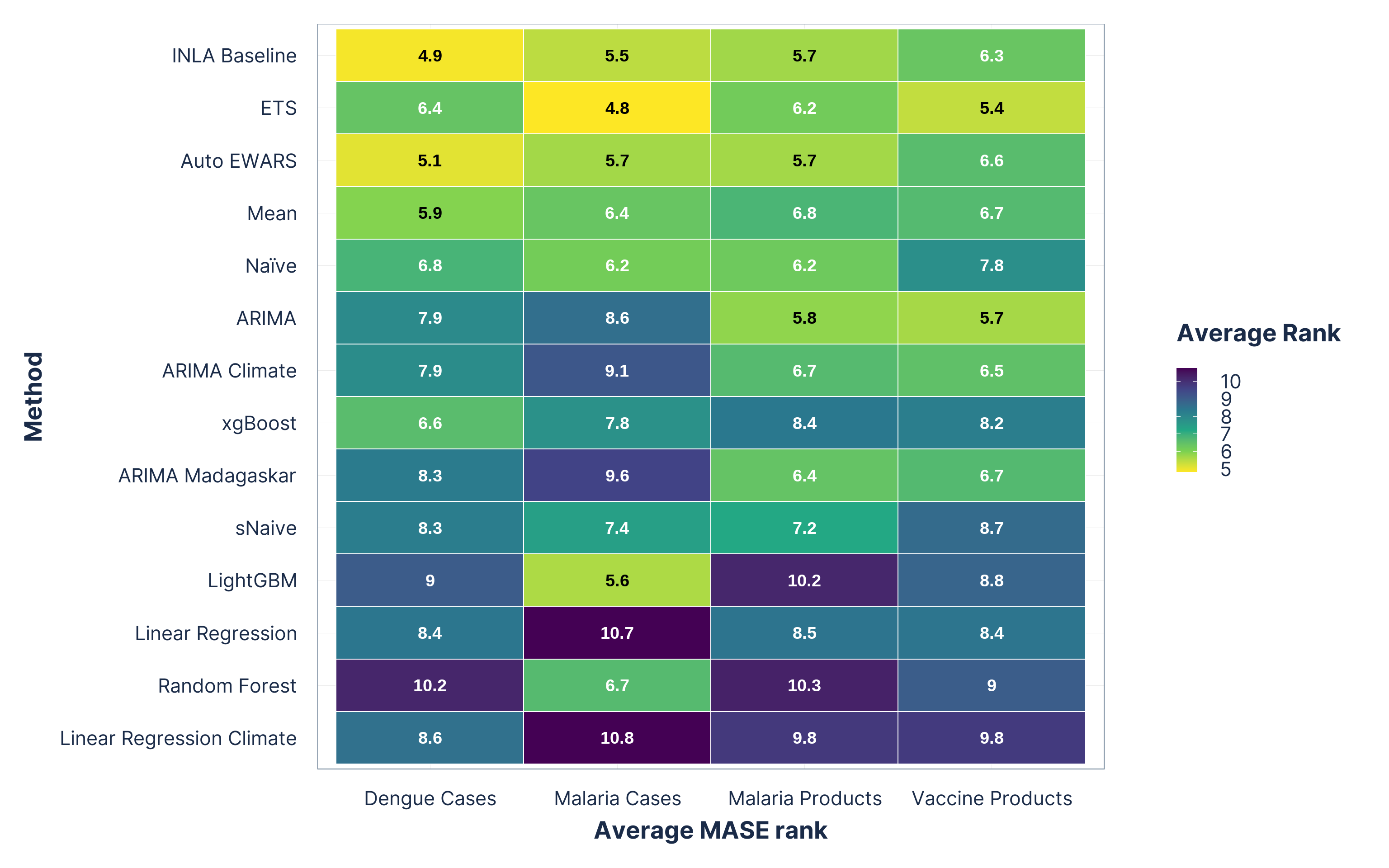

Figure 2: Average point forecast (MASE) ranks. Methods on the y-axis are ordered from best (top) to worst (bottom) based on their overall average rank across all domains. Lower ranks indicate better performance.
Average forecast method rankings

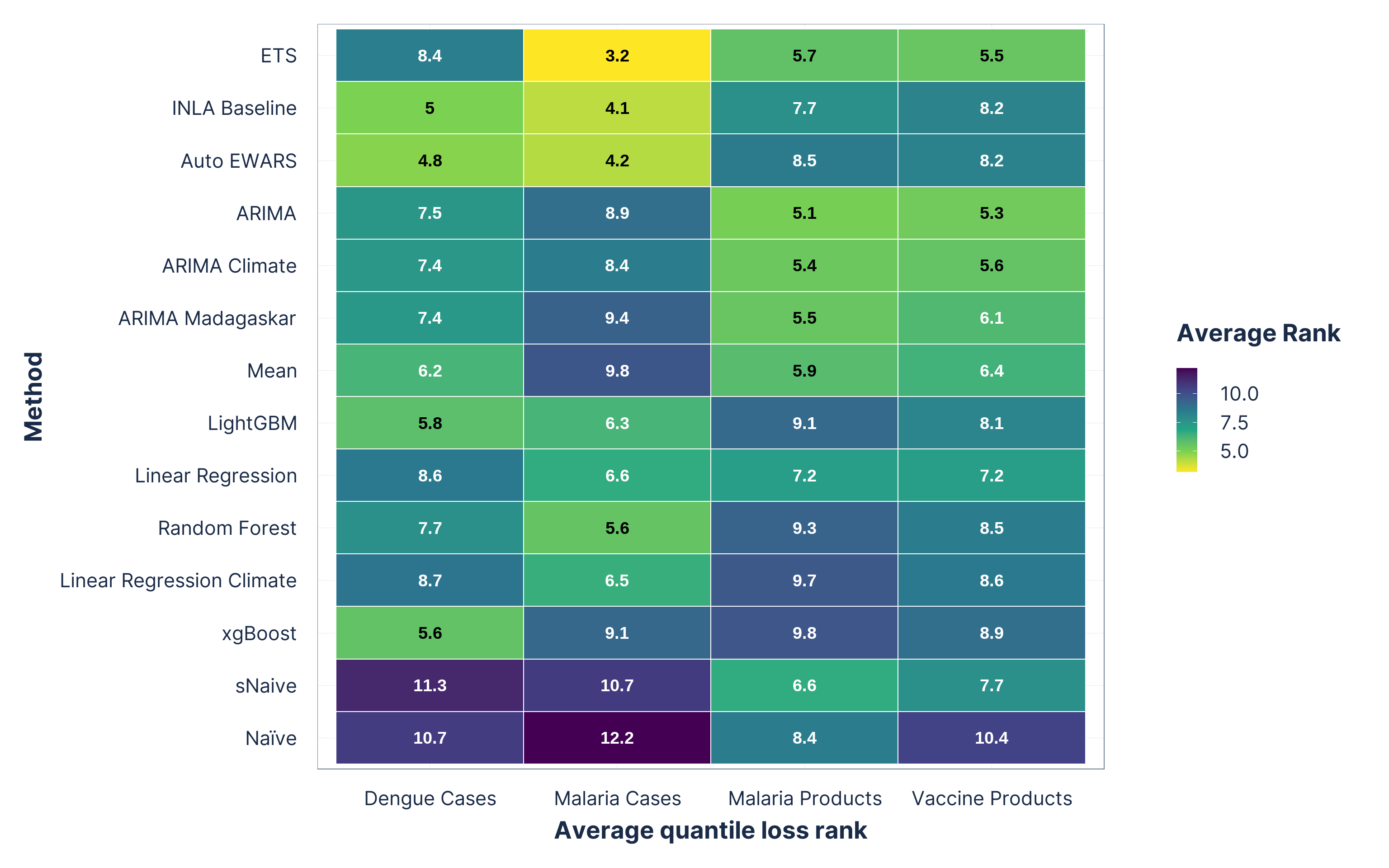

Figure 3: Average probabilistic forecast (quantile loss) ranks. Methods on the y-axis are ordered from best (top) to worst (bottom) based on their overall average rank across all domains. Lower ranks indicate better performance.
Overall inventory performance - Malaria products

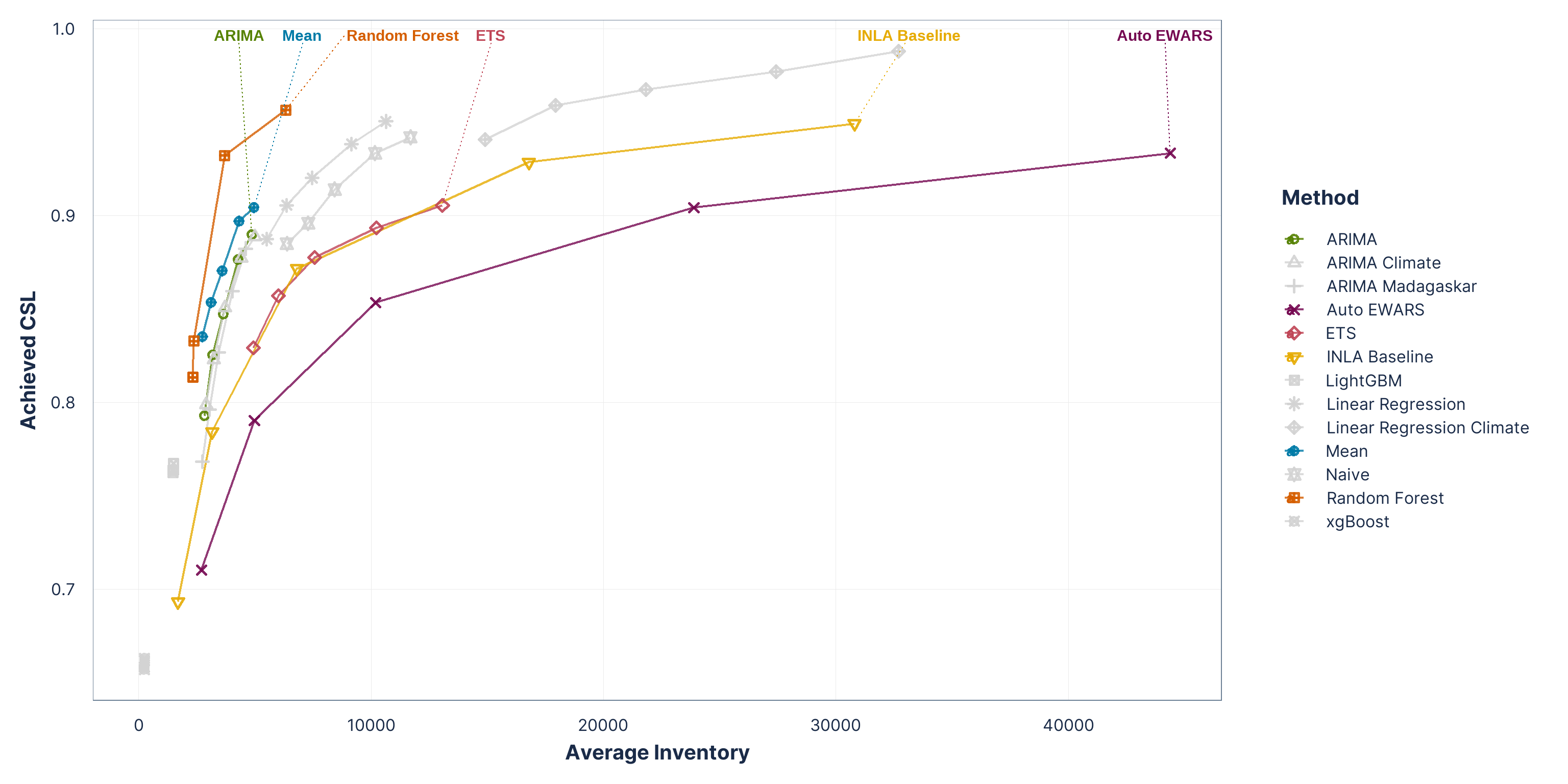

Figure 4: Inventory performance across malaria-product simulations using quantile-based order-up-to policies (q80–q97.5).
Overall inventory performance - Vaccine

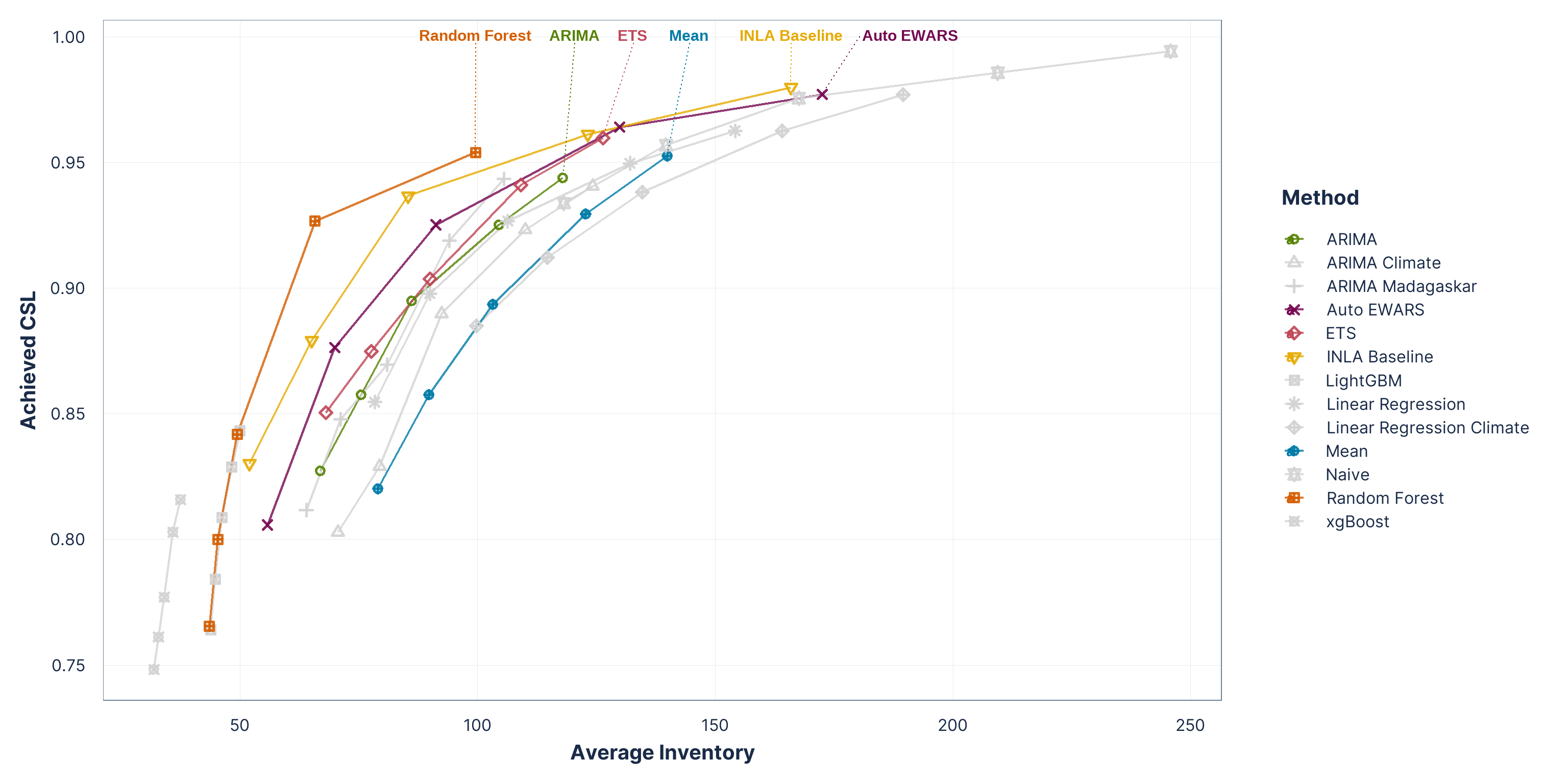

Figure 5: Inventory performance across vaccine-product simulations using quantile-based order-up-to policies (q80–q97.5).
Execution scalability of all forecasting methods
Figure 6: Model portability metrics for all candidate forecasting methods, relative to the Mean method. Relative MASE and QL(0.9) are reported separately for malaria and vaccine products; values below 1 indicate improvement over the Mean method.

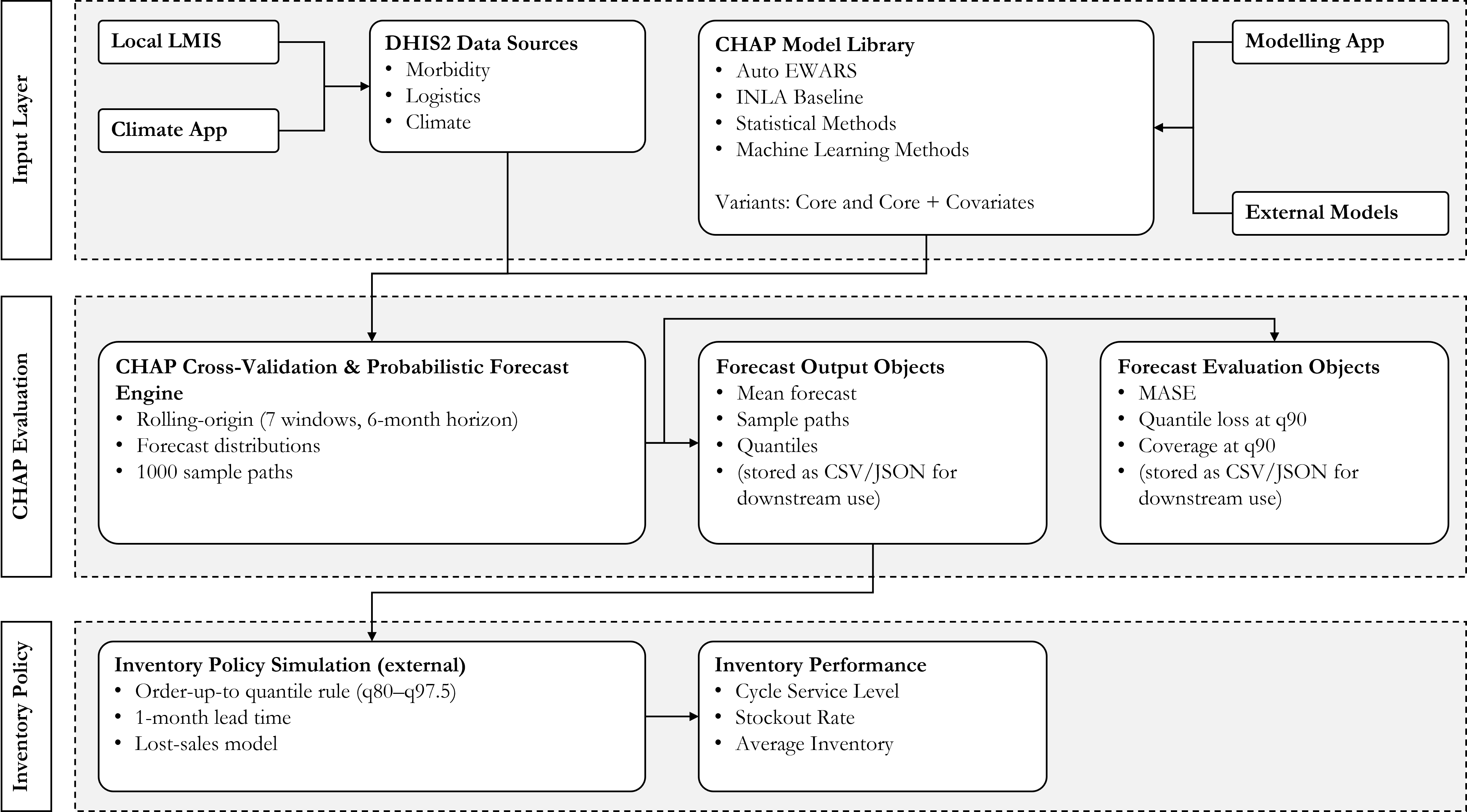

Proposed end-to-end forecasting-to-inventory architecture
Any questions or thoughts? 💬
